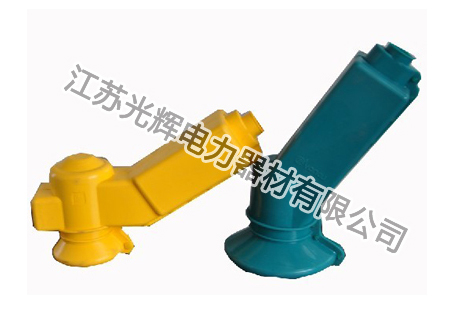

Transformer insulation shield
Details
High pressure side shield：
| Name Of Fittings | Shield Model | Wiring Mode | Applicable Conductormm2 |
| M16 and below thread ends | G10-01 | Oblique | 1×162-1202 |
| M20 and below thread ends | G10-03 | Oblique | 1×1202-2402 |
| 90 ° clamp 1 and 2 | G10-02 | Vertical | 1×162-702 |
| Terminal block | D10-01 | Transverse | 1×162-1502 |
| Terminal block | D10-04 | Transverse | 1×162-952 |
| Terminal block | D10-05 | Oblique | 1×16-952 |
| Terminal block | D10-06 | Transverse、Oblique | 1×16-952 |
| 1. 2 equipment wire head 0 ° | S10-01 | Transverse | 1×2-702 |
| 1. 2 equipment wire head 30 ° | S10-02 | Oblique | 1×2-702 |
| 3. 4 equipment wire head 0 ° | S10-03 | Transverse | 1-2×702 |
| 3. 4 equipment wire head 30 ° | S10-04 | Oblique | 1-2×702 |
Low pressure side shield：
| Name Of Fittings | Shield Model | Wiring Mode | Applicable conductor |
| S1-11 | Transverse | 1×1202-2402 | |
| S1-12 | Oblique | 1×1202-2402 | |
| S1-01 | Transverse | 1×352-952 | |
| S1-02 | Oblique | 1×352-952 | |
| Busbar | M1-01 | Transverse | 428×40-80 |
| M16 and below thread ends | G1-02 | Oblique | 1×352-1202 |
| G1-10 | Oblique | 1×352-2402 | |
| D1-01 | Transverse | 1×352-952 | |
| Terminal block | D1-02 | Transverse | 1×352-1502 |
| D1-11 | Transverse | 1-2×1202-2402 | |
| 30°Terminal block | D1-12 | Oblique | 1-2×1202-2402 |
